Overview

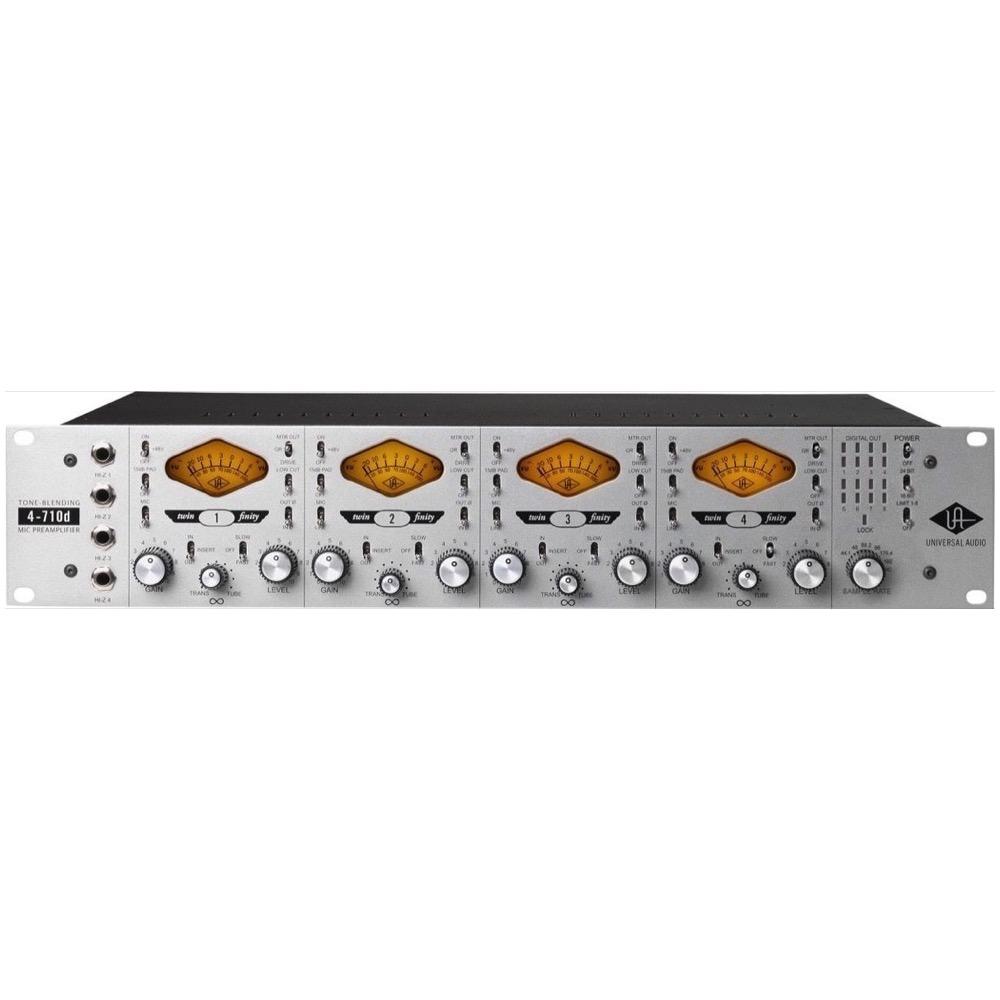

The Universal Audio 4-710d is a boutique-quality, four-channel microphone/line preamplifier with unique tube and solid-state tone blending capabilities, perfect for a wide range of microphone and instrument sources. This versatile multi-channel preamp offers selectable 1176-style compression circuitry on each channel, plus four additional line inputs feeding eight channels of pristine analog-to-digital conversion. Building upon UA's classic analog design approach, combined with smart modern features, the 4-710d is the most flexible preamp in the UA lineup.Features:
- Four TEC Award-winning 710 Twin-Finity microphone/line preamps- Dual-path 285-volt Class-A tube and trans impedance solid-state preamps
- Phase-aligned tone-blending of tube and solid-state circuits, creamy to crunchy
- Newly designed 1176-style compression circuit per preamp channel
- Eight channels of high quality 24-bit A/D conversion
- Selectable sample rates up to 192 kHz

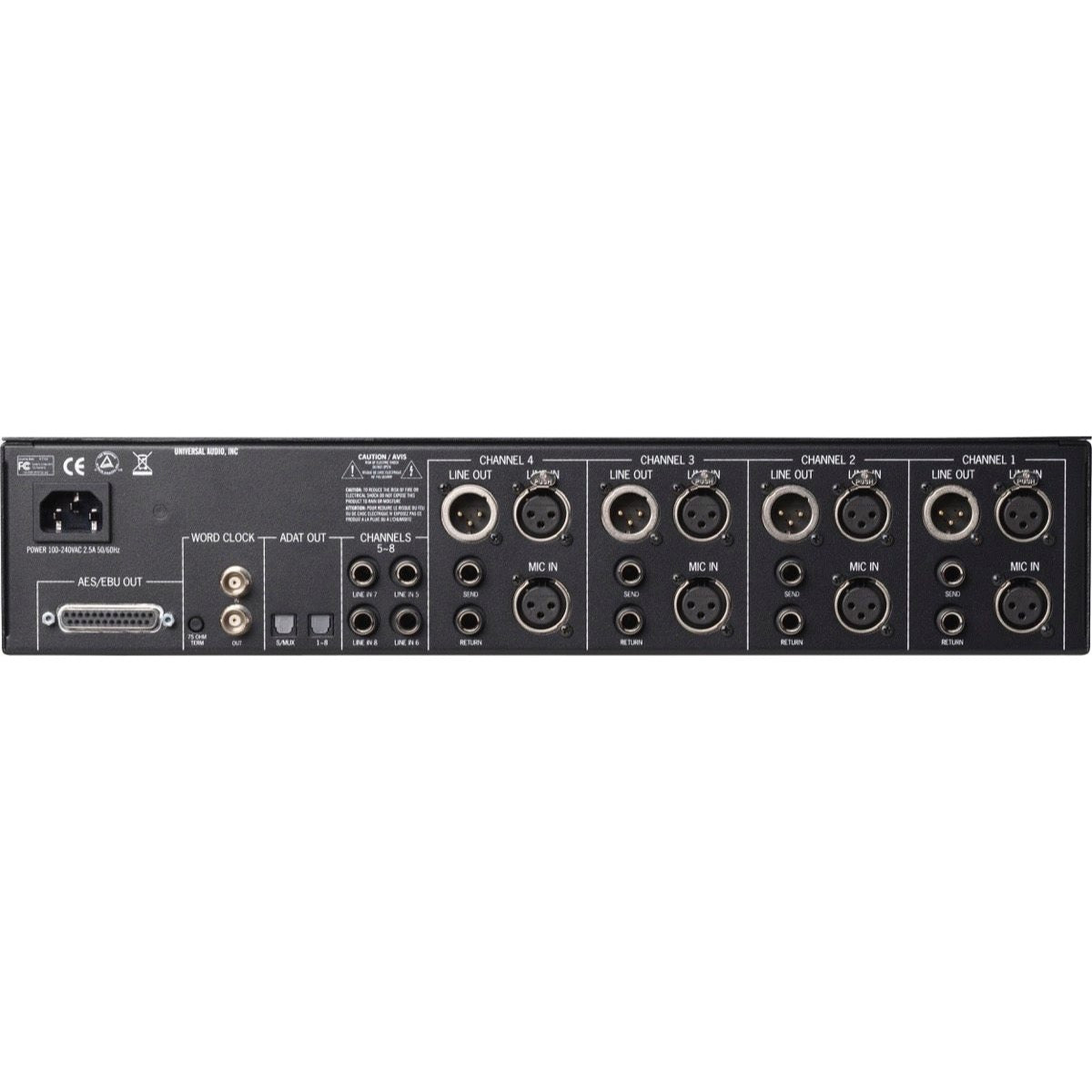

- Digital output via dual ADAT optical and AES/EBU DB-25 connectors
- 8-channel soft limiter (switchable for all channels)
- 1-year Limited WarrantyAt the core of the 4-710d are four channels of tone-blending Twin-Finity mic preamps with true-bypass 1176-style compression, including specially tuned "fast" and "slow" settings. Each of the four mic preamp channels allows for continuously variable phase-aligned tone, between a 100% tube and 100% solid-state signal path. Send and return jacks are available for external processing or signal access.The eight analog inputs are digitized via ultra-high quality 24-bit A/D converters at selectable sample rates up to 192 kHz. Digital output is available via dual ADAT lightpipe or AES/EBU DB-25 connectors, facilitating integration with most popular audio interfaces.
